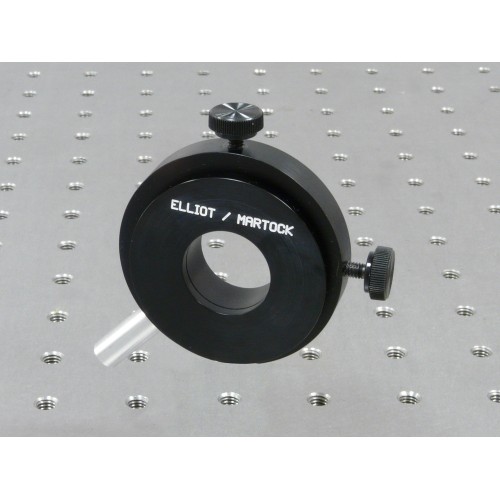

MDE870 - 25 mm (1 inch) Centring Lens Mount

MDE870 - 25 mm (1 inch) Centring Lens Mount
MDE870 - 25 mm (1 inch) Centring Lens Mount
  • Stock: In stock - Contact us for lead times.
  • Click here to: Contact us
  • Model: Martock MDE870
Elliot | Martock Elliot | Martock
£181.00
Add to Cart
Buy Now Contact your local distributor

1" (25 mm) Centring Lens Mount

MDE870

  • Mounts 1" or 25 mm lens
  • Travel in X & Y ± 2.5 mm
  • Convenient sleeve clamping of optic
  • Accepts a range of optic thicknesses

Part of a range of economical, post mountable lens holders with X and Y adjustment for lens centring applications and general laboratory use.

Specifications

Optic size 25 mm / 1.0 inch
Adjusters Drive screws with knurled knob
Travel ± 2.5 mm in X & Y
Mounting hole M4 threaded hole



Further options
MDE874 RMS 0.800-36 threaded insert to accept microscope objectives

File Name Size Link
MDE870_126.PDF 95.48KiB Download
MDE870_3D_126.PDF 279.39KiB Download
Terms and Conditions V6 207.42KiB Download
