Erbium-Doped Fibre Lasers, Amplifiers & Broadband Sources

IPG 1.5 Micron Devices

The ELR series are single-mode continuous wave (CW) Erbium fibre lasers with powers up to 50 W that provide diffraction limited output in the 1535 to 1605 nm spectral range. They offer turnkey operation, compact size, and air-cooled simplicity for unique reliability. They make an ideal IR source for lab applications and researchers can select from a wide range of options including direct (up to 2 kHz) modulation, optical isolation at the output, pumping redundancy, termination and more.

Applications

Biomedicine & Medical
Coherent or spectral beam combining
Mid-IR crystal and OPO pumping
Optical Tweezers
Photonic switching
Sensors and detectors
Test and measurement

Lasers

Continuous Wave/Modulated
- Random polarisation
  - ELR
    - Wavelengths from 1535 to 1575 nm
    - <1 nm linewidth
    - CW or modulated (up to 2 kHz)
    - Available in 1 to 50 W output powers
- Linearly polarised
  - ELR LP
    - Wavelengths from 1532 to 1570 nm
    - <1 nm linewidth
    - CW or modulated (up to 2 kHz)
    - Available in 10, 20 or 30 W output powers
Continuous Wave
- Single Frequency random (SF) or linearly polarised (LP-SF)
  - ELR SF or ELR LP-SF
    - Wavelength: 1535 to 1605 nm (1545 to 1565 nm - 20 and 30 W models only)
    - Linewidth <50 kHz
    - Optical isolation at the output
    - Available in 1 to 30 W output powers

Amplifiers

IPG's EAR series of air-cooled Erbium single-mode fibre amplifiers cover the spectral range from 1540 to 1605 nm with output powers up to 30 W. The amplifiers deliver high end parameters out of a convenient package with touch screen, Ethernet and RS-232 interfaces. Options include pump current modulation up to 2 kHz and red aiming laser. Elliot Scientific offers the following models:

Continuous Wave
- Random or linear polarisation
  - EAR & EAR LP
    - Wavelengths available: C-band 1540-1565 nm, L-band 1570-1605
    - L-band units available in 1, 2, 5 or 10 W models
    - C-band units as above plus 20 and 30 W models
    - Optional red aiming laser available on 1, 2 and 5 W models
    - Optional pump current modulation up to 2 kHz
    - Maintenance-free operation
    - User-friendly interface
    - Automatic power and current controls
- Linear polarisation, single frequency
  - EAR LP-SF
    - Up to 30 W saturated output power
    - Optional red aiming laser available on 1 and 2 W models
    - Optional pump current modulation up to 2 kHz
    - Maintenance-free operation
    - User-friendly interface
    - Automatic power and current controls

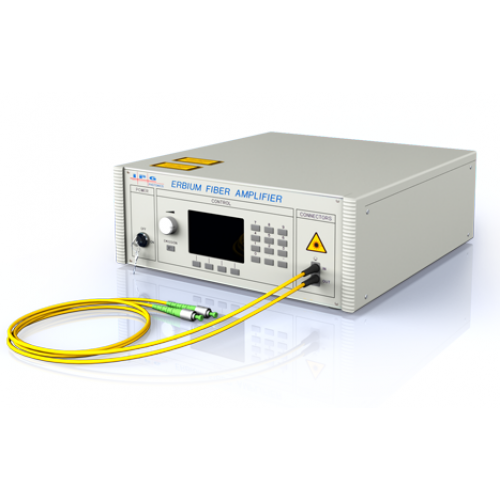

EAD Series C- & L-Band Amplifiers

IPG also offers C- & L-band single-channel randomly polarised Erbium-doped fibre amplifierse with output powers from 500 mW up to 5 watts. The EAD series amplifiers are conveniently packaged for use in a laboratory environment. Example applications include: research and development in telecommunications, photonics switching, and sensors.

Everything is contained in one desktop instrument, including the EDFA with up to 5 W saturated power output. The front panel includes a monitor display, a keyed on/off switch, power control and fibre input/outputs.

A datasheet is available in the Documents tab above or, for more inofrmation, please contact us.

CAUTION
As with all eye-safe 1530 to 1620 nm lasers, operation generally means that the eye damage threshold is significantly higher than for a 1064 nm laser. Nevertheless, this is a Class IV laser and IPG recommends that appropriate eyewear always be worn, and laser safety procedures followed.
