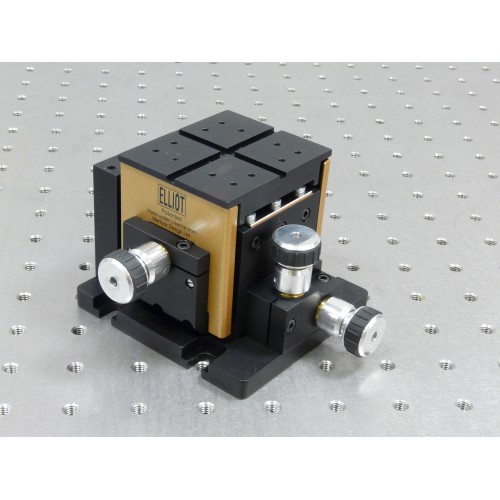

MDE120 - Elliot Gold™ Series XYZ Flexure Stage with Standard Manual Adjusters
- Stock: In stock - Contact us for lead times.
- Click here to: Contact us
- Model: Martock MDE120
Elliot Gold™ Series XYZ Flexure Stage with Standard Manual Adjusters
MDE120
- 200 nm resolution
- 2 mm travel per axis
- 4.5 kg load capacity
- Minimal arcuate displacement
- Orthogonal alignment grooves
- Ultra-stable patented† design XYZ flexure stage
The MDE120 flexure stage is fitted with standard manual adjusters and provides 200 nm of adjustment resolution with 2 mm of travel in each of the three axes.
The Elliot Gold™ series XYZ flexure stage is a development of the immensely popular original stage invented and patented† by Martock Design, now a subsidiary of Elliot Scientific. Flexure stages are ideal for high precision device manipulation.
Applications range from fibre launch systems for single-mode, multimode and polarisation maintaining fibres as well as waveguide alignment, through to the manipulation of microstructures in bioscience. The arcuate displacement (vertical displacement due to longitudinal flexure motion) is up to 4 times better than competing products.
The optical axis height of all accessories is 18 mm above the top plate, placing the optical axis 94 mm above the bottom of the stage.
| Specifications | |
| Configuration | Right handed version |
| Adjuster Type | Three standard, manual adjusters, 0.25 pitch (Model MDE217) (can be upgraded by replacement with MDE216 High Precision adjusters) |
| Stage travel | 2 mm in X, Y and Z axes |
| Resolution | 200 nm |
| Load capacity | 4.5 kg |
| Arcuate Displacement | X axis: 20 µm (at maximum range of travel) Y & Z axes: 14 µm (at maximum range of travel) |
| Optical axis | The optical height of all Flexure Stage accessories is 18 mm above the top plate. Therefore, the optical axis height of a mounted accessory is 94 mm above the bottom of the stage. |
| Includes |
____________ MDE 330 Flexure stage (( with 1x MDE154 clampset incl)) MDE217 Adjusters (x3) |
|
Nominal Weight :
Variants |
0.976 Kg_ _____________ Left-handed version available |
Upgrades to Piezo AdjustersSee our accessories brochure for the range of accessories and options available for the GOLD series flexure stages
† Patent Nos. GB 2129955B & USA 4635887
Elliot Martock adjusters catalogue
MDE120_184.SLDPRT
MDE120_184.STEP
