Positioning stages with piezo inertial drives

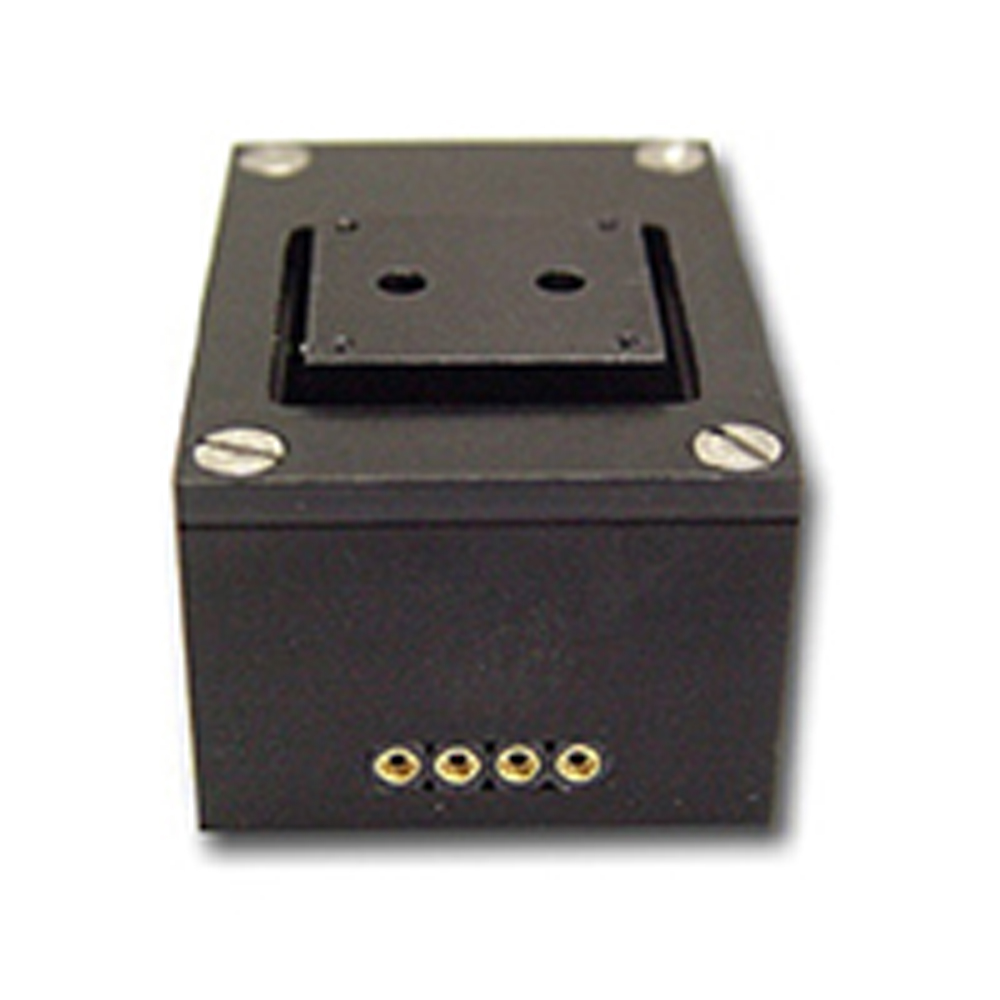

mechOnics Micropositioning Systems

Founded 2003 in Munich, mechOnics is a specialist in micropositioning systems, offering a complete range of positioning stages with piezo inertial drives. Direct drive of the linear axis by slip / stick rod means there is zero backlash or rotation.

Travel ranges of 2 to 30 mm are available with speeds of up to 2 mm/s. Linear stages are available in X, XY and XYZ configuration together with tilt options offering up to 6 degrees of tilt. Vacuum compatible and ultra low temperature versions are also available.

Position Sensors can be fitted for closed loop operation and a number of motor controllers are offered.

A comprehensive catalogue and price list can be downloaded from the Documents tab above.

	NDS Series Miniature Translation Stages for NOVA System Piezo driven step motor with low hysteresis Positioning accuracy better than 50 nm Open loop applications only Travel widths: NDS 40: 11 mm NDS 70: 15 mm Step-width: ~20 nm Holds position without power No limit switches necessary Works with NOVA controller Custom designs available
	DS Series Miniature Translation Stages Piezo driven step motor with low hysteresis Positioning accuracy better than 50 nm Open loop applications only Travel widths: DS 30: 8 mm DS 40: 11 mm Step-width: ~20 nm Holds position without power Vacuum & UHV models No limit switches necessary Custom designs available Variety of control options
	DSP Multi-phase Linear Stage Very compact Multiple piezo inertia drives Travel width: 10 mm Positioning accuracy to 1 µm Translation speed up to 1 mm/s 1, 2 or 3-axis models Vacuum model available NOVA control system
	MS Series Miniature Translation Stages Piezo electric inertial motor X, XY, and XYZ versions Special features: Through hole on MS 38 Cryogenic operation with ML 17 Travel widths: MS 15: 3.5 or 10 mm MS 30: 8, 18 or 30 mm MS 38: 8 mm ML 17: 5 mm Step-widths: MS 15: ~20 nm MS 30: ~200 nm MS 38: ~15 nm Holds position without power Vacuum & UHV models Linear measuring system optional Controller: CU 30 (NOVA with adaptor) Compact designs. MS 15 only 15 x 15 x 7 mm !
	MX Series Miniature XYZ Positioner Piezo driven Travel widths: MX 25: 2 mm in all axes MX 35: 10 mm in all axes Holds position without power Vacuum & UHV models Compact designs Controller: CF 30 or CU 30 (NOVA with adaptor)
	MT 25 Mirror Tilting Stage High angle resolution Angular adjustment ± 3° Angular resolution up to 1 µrad Holds position without current Vacuum model available Compact design, only 25 x 30.5 mm Customisation available Mounts in holders with Ø 25 or M4 threaded rods
	PS 30 Linear Measuring Sensor Open or closed loop operation: Open-loop with MS 30 - resolution up 50 nm Closed loop with CU 30 Vacuum preparation up to 10^-9 mbar Customisation available Compact design, only 34 x 13.2 x 12.4 mm
	PS 30-XYZ-Positioner PS 30 linear measuring sensors can be mounted together to form XY and XYZ positioners. Shown left is one possible configuration of an XYZ-positioner consisting of three PS 30 units.
